ADA Solutions, Inc. – Surfaced Applied Detectable Warning System

Description

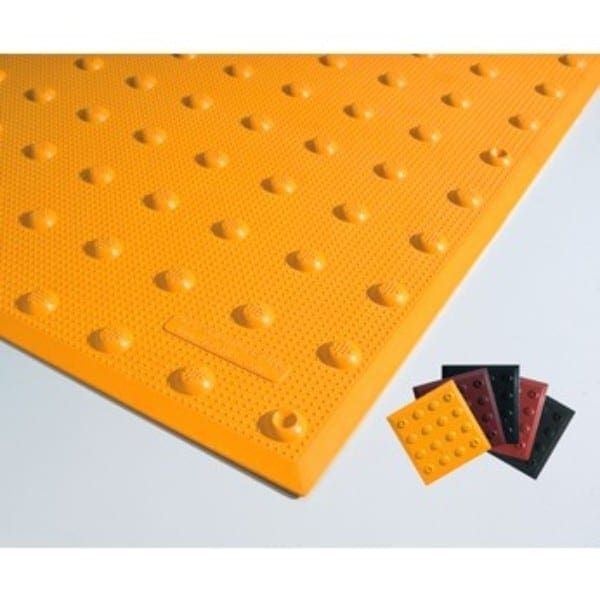

The perfect solution for retrofitting existing concrete surface or new construction, our surface applied panels are constructed of an exterior grade, fiberglass polymer composite material.

• For use in Retrofit applications
• Large perimeter beveled edges for smooth transition
• Secured with color-matched fasteners and structural adhesive
• Surface applied tiles are 1/8″ thick with beveled edges
• Standard sizes: 24″ x 36″, 24″ x 48″, 24″ x 60″, 36″ x 48″, and 36″ x 60″

Surfaced Applied Tactile, available in both Rectangular and Radius, is made of a colorfast and UV stable homogenous glass and carbon composite with fiberglass truncated domes for enhanced durability. The Surface Applied Tactile is used to retrofit over an existing concrete substrate and can be installed in as little as 10 minutes.

All of our truncated dome tactile surfaces are in full compliance with the American Disabilities Act Accessibility Guidelines (ADAAG), Public Right-of-Way (PROW), and California Title 24 Requirements. ADA Solutions
