• Body Thickness is 0.25” not including truncated domes (10% greater than the closest alternative).
• Panel Weight is 2.25 lbs. per SF (12% more material than the closest alternative).
• Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
• Utilizes time tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
• Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
• This insures 2” of embedment depth into the concrete (50% deeper than the closest alternative).
• The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy duty metal bolt located 0.25” into the body of the panel.
• The bolt head is fully covered and protected by structurally fit caps. This is a far superior to the open faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.

• Ideally engineered for applications where Radius conditions are 6’ – 22’.
• No Cutting required where Radius = 11’ -13’
• Pre Scored for 10’, 15’ and 20’ Radius
• Cut to fit within minutes

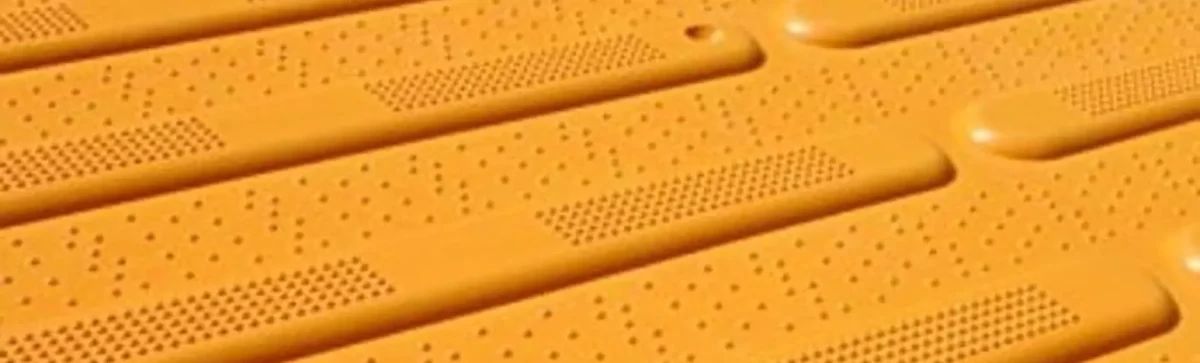

ADA Solutions, Inc., has set the industry standard for way-finding surfaces for over two decades. We understand and cater to the specific need for Directional Bar and Guide Surface Tiles to guide pedestrians across roadways and all walking surfaces.  These way-finding surface tiles are used for both new and existing concrete substrates.

All Tactile Warning System tiles manufactured by ADA Solutions, Inc., are designed to be installed on a concrete substrate. We do not recommend installing any of our products into asphalt, nor do we warranty such installations. Please contact us directly and one of our knowledgeable sales staff would be happy to explain an alternate solution.
